Vulcan Hot Water Systems from $549

Vulcan Hot Water Range Explained

Vulcan’s current Australian range is deliberately straightforward. Electric storage is available from compact 50L tanks through to 400L family systems. Gas storage is available in 135L and 170L 4-Star models. HWO also carries Vulcan DUOMAX electric products in several common capacities, so buyers replacing an existing unit should check the exact model code rather than relying on tank litres alone.

Vulcan Electric Hot Water Systems

Vulcan electric water heaters use a vitreous-enamel-lined steel storage cylinder and electric heating element. The current manufacturer range spans 50L, 80L, 125L, 160L, 250L, 315L and 400L. They operate at mains pressure and are designed as practical replacement products for Australian homes, rentals and trade maintenance work.

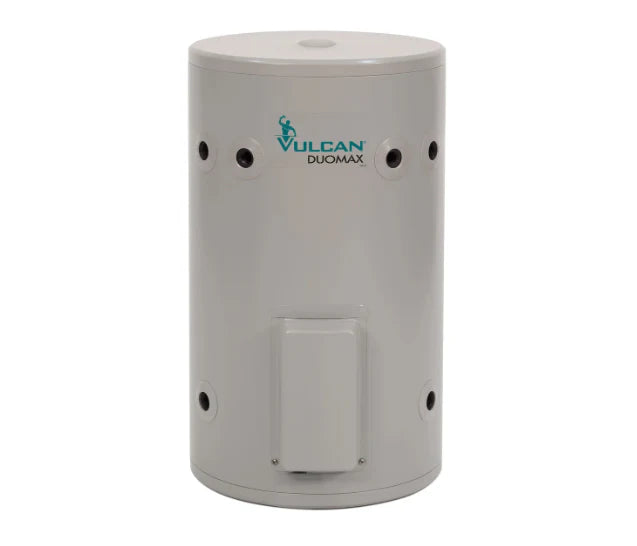

Vulcan DUOMAX Electric Hot Water Systems

Hot Water Outlet carries DUOMAX alongside standard Vulcan electric systems. DUOMAX listings overlap with standard Vulcan in common capacities such as 50L, 125L, 160L, 250L, 315L and 400L. That makes it important to treat DUOMAX as an exact-model choice rather than assuming a DUOMAX and standard Vulcan tank of the same capacity are automatically identical.

When replacing a DUOMAX, use the model number from the old data plate where possible. Compare tank height and diameter, hot and cold connection arrangement, element rating, pressure settings and required valves before ordering.

Single Element, Twin Element & Off-Peak Vulcan Systems

Most electric storage water heaters use one element to heat the cylinder. Selected larger Vulcan models are also available with twin elements. A twin-element system adds an upper boost element so a smaller portion of the cylinder can recover faster after heavy hot-water use.

Large storage tanks are commonly paired with controlled or off-peak electricity tariffs where available. The trade-off is that heating may only occur during certain periods, so the tank needs enough stored water to cover demand until the next heating window. A household with heavier use may need a larger tank, a boost arrangement or a different tariff strategy.

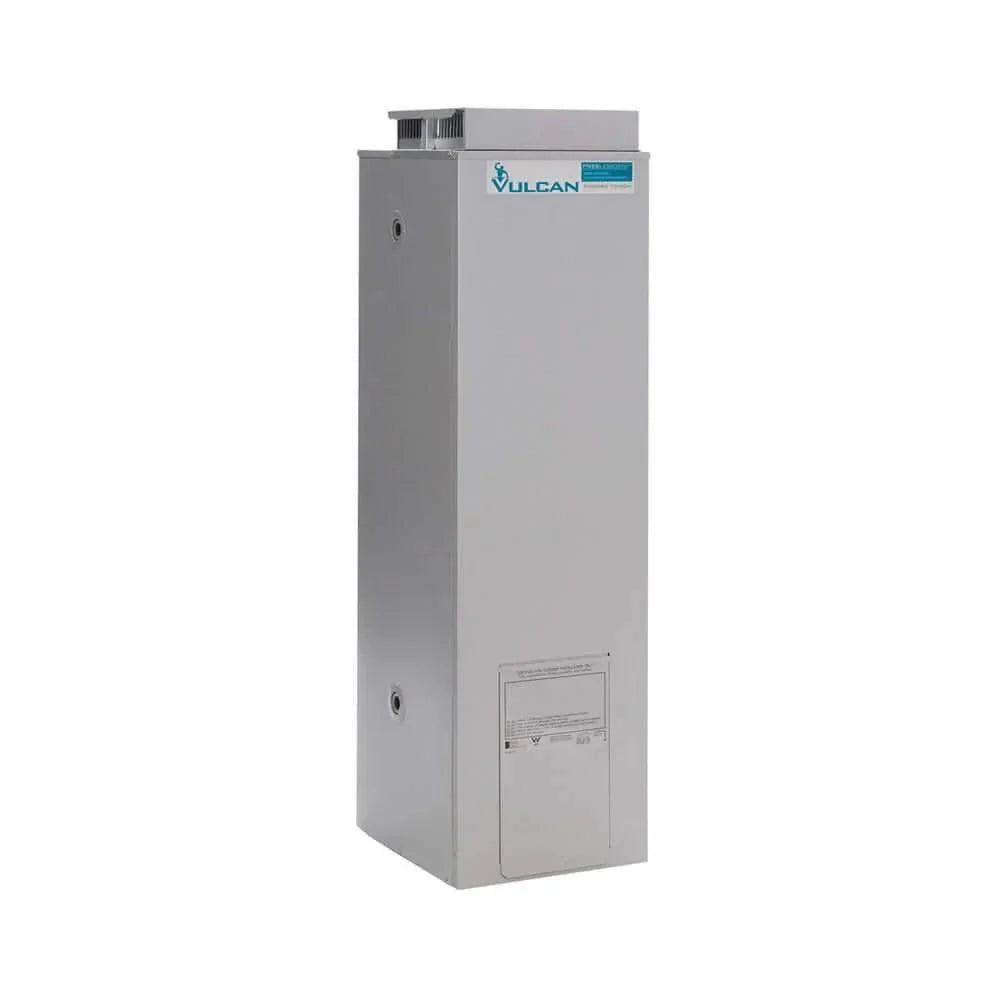

Vulcan 135L & 170L Gas Hot Water Systems

Vulcan’s current gas range is traditional outdoor storage rather than gas continuous flow. Both systems have a 4-Star gas energy rating and use a vitreous-enamel-lined storage cylinder with gas recovery. The 135L is available in Natural Gas and propane versions; the current 170L manufacturer model is listed for Natural Gas.

What Size Vulcan Hot Water System Do I Need?

Storage sizing should be based on actual household use rather than head count alone. A practical starting guide is around 40L per person per day for light use, 50L average, 65L high use and 80L very heavy use. Recovery rate and tariff then determine how much storage is needed between heating periods.

How the Main Vulcan Options Compare

Replacing an Existing Vulcan Hot Water System

The simplest replacement keeps the same energy source and similar capacity, then checks the exact model dimensions, connections and pressure requirements. Because Vulcan has standard electric, DUOMAX and gas-storage products, the model number is more useful than the brand name alone.

What Should Be Checked Before a Vulcan Replacement?

Vulcan systems are mains-pressure storage water heaters, so incoming water pressure and the valve arrangement matter. Current Vulcan electric specifications commonly use an 850kPa expansion-control-valve setting where an ECV is required, while current gas-storage specifications use a higher 1200kPa ECV setting. Always match the valves to the exact water heater rather than reusing components purely because they fit the pipe size.

Also compare water-connection positions. Smaller electric models can use different connection layouts from larger tanks, and some current 160–400L installation documentation provides dual-side plumbing arrangements on relevant product series. Exact dimensions and model-specific instructions should be checked before ordering.

Will the New Vulcan Fit Where the Old One Was?

Do not use litres alone to confirm fit. The Vulcan 315L standard model is approximately 1640mm high and 640mm wide, while the standard 400L is approximately 1840mm high and 690mm wide. Larger tanks also become very heavy when full, so the installation base and access path need to suit the new unit.

Before delivery, check gates, stairs, side access, cupboards, platforms and any restricted path between the vehicle and the final installation location. Also allow working space for valves, electrical or gas work and future servicing.

Product price only. Delivery, valves, fittings, pipework, installation and other extras are separate unless expressly included with the selected product.

Vulcan Warranty & Maintenance

Vulcan’s current product information promotes up to a 10-year cylinder warranty across the electric range and a 7-year cylinder warranty for current gas storage, with separate parts-and-labour coverage. Individual models can have different terms, so the exact warranty should always be checked against the model being purchased.

Common Vulcan Hot Water Problems & Replacement Signs

A Vulcan storage system with no hot water does not automatically need replacing. Electric systems can have power, thermostat or element faults. Gas storage can have pilot, gas-supply, thermostat or burner issues. Valves and plumbing can also leak without the cylinder itself having failed.

Buying a Vulcan Hot Water System Supply Only

Choose the Vulcan system first, then check delivery and add only the valves, pipework, fittings or accessories required for the job. For a replacement, the old model number, capacity, electric or gas type, dimensions and a clear photo of the existing installation make product matching much easier.
