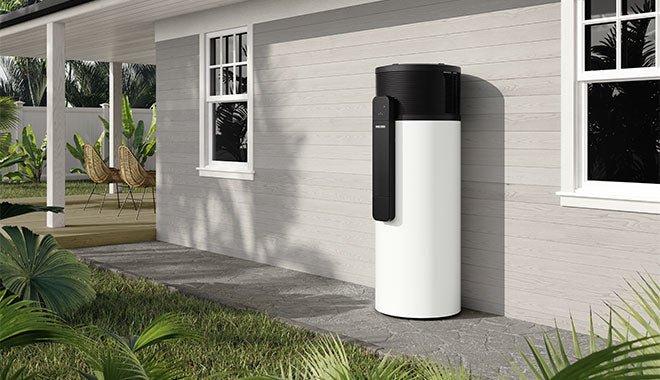

Stiebel Eltron SHP-O 200 Plus 200L Heat Pump Hot Water System

The Stiebel Eltron SHP-O 200 Plus 200L Heat Pump Hot Water System is available online from Hot Water Outlet as a supply-only heat pump hot water unit with metro delivery available in selected areas Australia wide.

Customers can purchase the Stiebel Eltron SHP-O 200 Plus 200L as a supply-only heat pump hot water system and request assistance arranging installation quotes after purchase through licensed local installers in selected metro regions.

The Stiebel Eltron SHP-O 200 Plus is a premium 200L heat pump hot water system designed for efficient domestic hot water using ambient air heat. With R290 refrigerant, MyStiebel App control, solar PV compatibility, a 10A power connection requirement and a COP of 4.27 under EN16147 / A20 testing, it is a strong option for households wanting a modern electric heat pump alternative to a standard electric storage hot water system.

About the Stiebel Eltron SHP-O 200 Plus 200L

The Stiebel Eltron SHP-O 200 Plus uses heat pump technology to draw heat from the surrounding air and transfer it into stored hot water. This can reduce reliance on direct electric element heating compared with a standard electric storage system while still using an integrated auxiliary heater when required.

The 200L capacity is suited to many smaller to medium households depending on hot water usage, shower flow rates, tariff setup, climate, recovery requirements and installation conditions.

This model uses R290 refrigerant, has Wi-Fi app control through the MyStiebel App and can integrate with solar PV systems using SG Ready functionality to help optimise self-generated electricity use where suitable.

Buy Stiebel Eltron SHP-O 200 Plus Supply Only

Buy the Stiebel Eltron SHP-O 200 Plus 200L supply only online from Hot Water Outlet if you already have a licensed plumber and electrician arranged for installation.

The product price is for the unit only. Installation, valve kits, old system removal, disposal, electrical work, pipework changes, drainage, condensate management, base preparation, pressure control and compliance upgrades are not included unless separately quoted.

Common search terms this product suits include:

• Stiebel Eltron SHP-O 200 Plus price

• Stiebel Eltron SHP-O 200L heat pump

• Stiebel Eltron 204472 heat pump

• 200L heat pump hot water system

• Stiebel Eltron heat pump hot water

• R290 heat pump hot water system

• Solar PV compatible heat pump

• Stiebel Eltron SHP-O 200 supply only

Installation Quotes Available After Purchase

Hot Water Outlet does not directly provide installation services.

After purchasing the Stiebel Eltron SHP-O 200 Plus 200L Heat Pump Hot Water System, customers in selected metro areas may request assistance arranging installation quotes through licensed local plumbers and electricians.

Installation quote availability depends on:

• service location

• installer availability

• installation suitability

• access

• airflow clearances

• drainage

• water pressure

• electrical requirements

• valve kit requirements

• available installation timeframes

Additional installation costs may apply for:

• valve kit replacement

• old system removal

• disposal

• electrical work

• dedicated circuit or power point changes

• pipework changes

• condensate drainage

• base or tray requirements

• pressure limiting valve requirements

• restricted access

• indoor space or ventilation requirements

• outdoor clearance requirements

• relocation from the existing hot water position

• non-compliant existing installation

Stiebel Eltron SHP-O 200 Plus Delivery Brisbane

Hot Water Outlet offers metro delivery for the Stiebel Eltron SHP-O 200 Plus 200L Heat Pump Hot Water System in selected Brisbane areas.

This model may suit Brisbane homes replacing an older electric storage hot water system, especially where the customer wants a modern heat pump option with solar PV compatibility and app-based control.

Stiebel Eltron SHP-O 200 Plus Delivery Gold Coast

Hot Water Outlet offers metro delivery for the Stiebel Eltron SHP-O 200 Plus 200L Heat Pump Hot Water System in selected Gold Coast service areas.

This system may suit coastal homes, townhouses, investment properties and family homes looking for a compact 200L heat pump hot water unit.

Stiebel Eltron SHP-O 200 Plus Delivery Sydney

Hot Water Outlet offers metro delivery for the Stiebel Eltron SHP-O 200 Plus 200L Heat Pump Hot Water System in selected Sydney metro areas.

Customers can purchase online and request assistance arranging installation quotes after purchase where available.

Stiebel Eltron SHP-O 200 Plus Delivery Melbourne

Hot Water Outlet offers metro delivery for the Stiebel Eltron SHP-O 200 Plus 200L Heat Pump Hot Water System in selected Melbourne metro areas.

Customers can purchase online and request assistance arranging installation quotes after purchase where available.

Is the Stiebel Eltron SHP-O 200 Plus Right for Your Home?

This system may suit you if:

• you want a 200L heat pump hot water system

• you are replacing an existing electric storage hot water system

• your household has moderate hot water usage

• you want a heat pump with R290 refrigerant

• you want Wi-Fi control through the MyStiebel App

• you want a solar PV compatible hot water system

• you have suitable airflow, drainage, access and installation space

• you have a suitable 10A electrical connection or can arrange electrical work

• you prefer supply-only purchase flexibility

Extra work may be required if:

• the system is being moved to a new location

• existing valves are old, missing or non-compliant

• electrical upgrades are required

• drainage or condensate management needs to be added

• a suitable base or tray is required

• water pressure control is required

• indoor space or ventilation is not suitable

• outdoor clearances are restricted

• access is difficult

• the old system needs removal or disposal

• your household needs a larger capacity model due to higher hot water demand

Key Features of the Stiebel Eltron SHP-O 200 Plus

• 200L heat pump hot water system

• Article number 204472

• Uses ambient air heat for efficient hot water production

• R290 refrigerant with low GWP

• COP of 4.27 under EN16147 / A20 testing

• A+ energy efficiency class

• Maximum DHW temperature of 65°C using heat pump operation

• MyStiebel App control and monitoring

• Solar PV compatible with SG Ready functionality

• Timer functionality via app

• Hygiene program

• Smart auxiliary element

• 1.5 kW auxiliary heater

• 10A connection requirement

• Indoor or outdoor installation where suitable

• Minimum indoor space requirement of 13m³

• Outdoor clearance requirement of 500 mm either side of the grille

• Sound pressure level of 47 dB(A) at 2 m

• Empty weight of 98 kg

• Filled weight of approximately 304 kg

• 1478 mm high x 650 mm diameter

• Stiebel Eltron-listed warranty terms apply

Quick Specs

Brand: Stiebel Eltron
Range: SHP-O Plus
Product: SHP-O 200 Plus 200L Heat Pump Hot Water System
Article Number: 204472
System Type: Heat pump storage hot water
Tank Volume: 200L
Recommended Household Size: Smaller to medium households depending on usage
Installation Type: Indoor or outdoor where suitable
Energy Efficiency Class: A+
COP: 4.27 under EN16147 / A20 testing
Refrigerant: R290
Refrigerant Mass: 152 g
GWP: 0.02
Maximum DHW Temperature with Heat Pump: 65°C
Minimum DHW Temperature with Heat Pump: 35°C
Application Limits: -5°C to +43°C with element support in colder climates
Power Supply: 1/N/PE 220–240 V 50 Hz
Connection Requirement: 10A connection
Average Heat Pump Power Consumption: 0.45 kW
Auxiliary Heater Power Consumption: 1.5 kW
Maximum Operating Current: 9.88 A
Safety Valve Connection: G 1/2
Sound Pressure Level at 2 m: 47 dB(A)
Height x Diameter: 1478 mm x 650 mm
Empty Weight: 98 kg
Filled Weight: Approximately 304 kg
Minimum Indoor Space Requirement: 13m³
Outdoor Clearance Requirement: 500 mm either side of grille
App Control: MyStiebel App
Solar PV Compatibility: SG Ready
Warranty: Current Stiebel Eltron warranty terms apply

Heat Pump Storage Hot Water

The Stiebel Eltron SHP-O 200 Plus stores hot water in a 200L cylinder and uses heat pump technology to heat the water efficiently.

Unlike a standard electric storage hot water system that relies mainly on direct electric element heating, a heat pump uses surrounding air as the main heat source. This can make it a strong option for customers wanting to reduce electricity use for water heating, especially where the site is suitable and the unit is installed correctly.

Efficient Heat Pump Hot Water

The SHP-O 200 Plus has a listed COP of 4.27 under EN16147 / A20 testing. COP is a laboratory efficiency measure that compares heat output to electrical input under set test conditions.

Real-world performance depends on ambient temperature, hot water usage, installation location, airflow, settings, tariff setup and whether the auxiliary heater is used.

R290 Refrigerant

The Stiebel Eltron SHP-O 200 Plus uses R290 refrigerant, also known as propane. R290 is a natural refrigerant with low global warming potential.

Because R290 is flammable, refrigeration-related work must be carried out by appropriately qualified contractors. Normal plumbing and electrical installation requirements still apply.

Built-In Wi-Fi Control

The SHP-O 200 Plus can be connected to the MyStiebel App, allowing the customer to monitor and control hot water settings from a smartphone or tablet.

The app can support features such as temperature adjustment, timer functions, hot water boost and system monitoring depending on setup and connectivity.

Solar PV Compatibility

The Stiebel Eltron SHP-O 200 Plus is solar PV compatible using SG Ready functionality. This can help the unit operate in a way that better uses self-generated solar electricity where the home has a suitable solar PV system and the installation is configured correctly.

Solar PV integration depends on the electrical setup, system configuration and installer requirements.

Off-Peak Operation Option

The timer functionality available through the app can help customers manage when the system operates.

This may be useful for homes trying to align hot water heating with solar production, daytime operation or suitable electricity tariff windows. Actual running costs depend on energy rates, settings, usage and household conditions.

Multiple Operating Modes

The SHP-O 200 Plus includes controls for boost, pairing and emergency operation. Status LEDs make operation easier to monitor at the unit.

The smart control setup gives customers practical options for everyday use while still keeping the system simple to operate.

Electric Boost Element

The unit includes a 1.5 kW auxiliary heater. This can support hot water recovery when needed, such as during higher demand or cooler operating conditions.

The auxiliary heater should not be treated as the main efficiency feature. The heat pump is designed to use ambient air heat as the primary heat source where conditions allow.

Plug or Hardwired Electrical Requirement

The Stiebel Eltron SHP-O 200 Plus requires a 1/N/PE 220–240 V 50 Hz power supply and only a 10A connection is required according to Stiebel Eltron product information.

Electrical work, power point changes, circuit changes or compliance upgrades are not included unless separately quoted.

Auto Hygiene Function

The SHP-O 200 Plus includes an automatic hygiene function to help maintain water quality.

This is a useful feature for stored hot water systems, especially where the system is being managed through programmed operation or lower-energy running patterns.

Quiet Operation

The Stiebel Eltron SHP-O 200 Plus has a listed sound pressure level of 47 dB(A) at 2 m. It is designed for quiet operation with no compressor noise in the airflow and optimised recirculation air mode.

Noise impact still depends on the installation location, surrounding walls, nearby windows, fences, acoustic reflections and local site conditions.

Indoor or Outdoor Installation

The SHP-O 200 Plus can be installed indoors or outdoors where suitable. Indoor installation requires appropriate room volume and ventilation, while outdoor installation requires correct clearances around the grille and suitable weather, drainage and service access conditions.

Stiebel Eltron lists a minimum indoor space requirement of 13m³ and an outdoor clearance requirement of 500 mm either side of the grille. The installation guide should be checked before ordering or installation.

Water Pressure and PLV Requirements

Water pressure must be checked before installation. A pressure limiting valve may be required depending on the property’s incoming water pressure, the selected valve kit and the installation requirements.

High water pressure, missing valves or non-compliant existing pipework can affect installation scope and final cost.

Drainage and Condensate Requirements

Heat pumps produce condensate during operation. The installation location must allow suitable condensate drainage in addition to standard hot water system safety valve discharge requirements.

Drainage changes are not included unless separately quoted.

STCs and Government Incentives

Heat pump hot water systems may be eligible for STCs or government incentives depending on the product, installation date, location and program rules.

Eligibility, rebate value and availability can change. Any incentive should be checked before purchase and should not be treated as guaranteed unless confirmed as part of the checkout or installation process.

Clearance Requirements

Correct airflow is critical for heat pump performance. The SHP-O 200 Plus needs suitable installation clearance so the unit can draw and discharge air properly.

Poor airflow, tight enclosures, blocked grilles or unsuitable indoor spaces can reduce performance and may make the installation non-compliant or unsuitable.

Stiebel Eltron SHP-O 200 Plus vs SHP-O 300 Plus

The Stiebel Eltron SHP-O 200 Plus is the smaller 200L model, while the SHP-O 300 Plus is the larger 300L model.

The 200L model may suit smaller to medium households with moderate hot water usage. The 300L model may be better for larger households, higher usage, multiple bathrooms or homes wanting more stored hot water capacity.

The right size depends on the number of people in the home, shower habits, fixture flow rates, tariff setup, recovery requirements, available space and whether the home wants to maximise heat pump operation during solar production windows.

Stiebel Eltron SHP-O vs Standard Electric Storage

A standard electric storage system uses an electric element to heat water directly. The Stiebel Eltron SHP-O 200 Plus uses heat pump technology to draw heat from the surrounding air with an auxiliary element available when required.

The SHP-O 200 Plus may be a better option for customers wanting a more efficient electric hot water upgrade, app control and solar PV compatibility. A standard electric storage system may still suit customers wanting a simpler lower upfront cost replacement where heat pump space, airflow, noise, drainage or electrical requirements are not suitable.

Common Uses

The Stiebel Eltron SHP-O 200 Plus 200L Heat Pump Hot Water System can be suitable for:

• electric storage hot water replacement

• heat pump hot water upgrades

• 200L hot water system replacement

• smaller to medium households

• homes with solar PV

• townhouses

• family homes with moderate hot water usage

• rental properties

• investment properties

• renovation projects

• energy-efficient hot water upgrades

• homes wanting app-based heat pump control

• homes wanting lower energy electric hot water operation

Frequently Asked Questions

Can I buy the Stiebel Eltron SHP-O 200 Plus supply only?

Yes. You can buy the Stiebel Eltron SHP-O 200 Plus as a supply-only unit if you already have a licensed plumber and electrician arranged.

Does Hot Water Outlet install heat pump hot water systems?

No. Hot Water Outlet does not directly provide installation services. Customers may request assistance arranging installation quotes after purchase in selected metro areas.

Can I get the Stiebel Eltron SHP-O 200 Plus installed in Brisbane?

Customers in selected Brisbane areas may request assistance arranging installation quotes after purchase depending on location, access, site conditions and installer availability.

Can I get the Stiebel Eltron SHP-O 200 Plus installed in Gold Coast?

Customers in selected Gold Coast service areas may request assistance arranging installation quotes after purchase subject to service coverage and site suitability.

Is installation included in the product price?

No. The product price is for the unit only unless separately quoted. Installation, valve kits, disposal, old system removal, electrical work, pipework changes, drainage and other extras are not included unless arranged separately.

What size is the Stiebel Eltron SHP-O 200 Plus?

The Stiebel Eltron SHP-O 200 Plus has a nominal capacity of 200L.

What is the article number?

The listed article number is 204472.

What refrigerant does it use?

The Stiebel Eltron SHP-O 200 Plus uses R290 refrigerant with a listed refrigerant mass of 152 g.

What is the COP?

The listed COP is 4.27 under EN16147 / A20 testing.

What is the energy efficiency class?

The listed energy efficiency class is A+.

What is the maximum hot water temperature?

The listed maximum DHW temperature with heat pump operation is 65°C.

Does it have Wi-Fi?

Yes. The SHP-O 200 Plus can be connected to the MyStiebel App for app-based control and monitoring.

Can it work with solar PV?

Yes. The SHP-O 200 Plus is SG Ready and compatible with solar PV systems where configured correctly.

Does it need a 10A connection?

Yes. Stiebel Eltron lists that only a 10A connection is required.

Is electrical work included?

No. Electrical work is not included unless separately quoted.

Can it be installed outside?

Yes. The SHP-O 200 Plus can be installed outdoors where suitable clearances, drainage, access and installation requirements are met.

Can it be installed indoors?

Yes. Indoor installation may be possible where the minimum space, ventilation, drainage and installation requirements are met. Stiebel Eltron lists a minimum indoor space requirement of 13m³.

What outdoor clearance is required?

Stiebel Eltron lists an outdoor clearance requirement of 500 mm either side of the grille. The installation guide should be checked for full requirements.

What are the dimensions?

The listed height and diameter are 1478 mm x 650 mm.

What does it weigh?

The listed empty weight is 98 kg. Filled weight is approximately 304 kg.

What is the sound level?

The listed sound pressure level is 47 dB(A) at 2 m.

Does it have an electric boost element?

Yes. The SHP-O 200 Plus includes a 1.5 kW auxiliary heater.

Is it suitable for replacing an old electric hot water system?

Yes. It may be suitable for replacing an old electric storage hot water system provided the site has suitable space, airflow, drainage, electrical supply, water pressure and installation access.

What is the difference between the SHP-O 200 Plus and SHP-O 300 Plus?

The SHP-O 200 Plus has a 200L capacity while the SHP-O 300 Plus has a 300L capacity. The 300L model may be better for larger households or higher hot water demand.

Is it eligible for rebates?

It may be eligible for STCs or other incentives depending on the product, installation, location and current program rules. Eligibility should be checked before purchase and should not be treated as guaranteed.

What warranty does it have?

Stiebel Eltron warranty terms can vary by product and documentation version. Current warranty details should be checked before purchase.

* Requested element size may come delivered separately to system for electric systems - All units supplied with factory with 3.6kW

**Where a unit supplied is capable of supplying more than 50°C, a tempering valve must be installed on the property or purchased as part of a valve kit with your order.

Buying a new hot water system or hot water part should be simple. Hot Water Outlet helps you compare hot water systems, valves, thermostats, elements, pipework and fittings in one place, so you can choose the products that suit your home, budget and hot water needs without the back and forth.

Whether you already know exactly what you need or you are still comparing electric, gas, instant gas, gas storage or heat pump hot water options, Hot Water Outlet makes it easier to order with confidence.

Why Customers Choose Hot Water Outlet

Hot Water Systems and Parts in One Place

Shop hot water systems, valves, thermostats, elements, pipework and fittings online from one focused hot water store. Choose the system first, then add the parts and accessories needed for your setup.

Clear Product Pricing Before Checkout

See your hot water system price upfront, then add common valves, fittings or accessories before placing your order. This makes it easier to plan your purchase and compare options before checkout.

Product Details That Actually Help

Key specs, sizing details, tank capacity, flow rate, gas type, energy source, dimensions, warranty information, product features and suitability notes are shown clearly, so you can compare hot water systems properly before you buy.

Valves and Accessories Available

Where relevant, you can add common hot water parts such as tempering valves, pressure relief valves, duo valves, non-return valves, thermostats, elements, pipework and fittings to help complete your order.

Built for Australian Hot Water Buyers

Hot Water Outlet is focused on hot water systems and accessories for Australian homes, rentals, renovations and replacement projects. Browse trusted brands and compare practical options for common household hot water needs.

One Simple Online Order

Add your hot water unit and selected parts to cart in one order, instead of searching across multiple suppliers for systems, valves, fittings and accessories.

Practical Help Before You Buy

Not sure which hot water system, size, energy type or accessory is right? Hot Water Outlet gives you a clearer way to compare electric hot water systems, heat pump hot water systems, gas storage hot water systems and instant gas hot water units before you order.

Designed To Make Your Decision Easier

Hot Water Outlet is built for customers who want a faster, clearer and more convenient way to buy hot water systems and hot water parts online.

Instead of guessing which product suits your home, searching multiple suppliers, or trying to match accessories separately, you can review the system, compare the specifications and add common hot water parts before checkout.

Choose your hot water system.

Add the valves and accessories you need.

Compare product details before checkout.

Order online with confidence.

It is a simpler way to buy the hot water products and parts that matter most.

Important Note

Product suitability can vary by property, existing services, energy source, gas type, available space, connection points, pressure requirements and local compliance requirements. Always check product specifications carefully and confirm the selected hot water system, valves, fittings and accessories are suitable for your property before ordering.

Standard Delivery: 2–8 business days

Express Delivery: 1–4 business days

90% of products are delivered the next business day where stock, postcode eligibility and freight availability allow.

Delivery timeframes are estimates and may vary by product, stock location, delivery postcode, carrier availability and order timing. Wet weather, storms, flooding or unsafe site access may delay delivery and are additional to any advertised or guaranteed freight timeframes.
