Electric Hot Water Systems from $499

How Does an Electric Hot Water System Work?

A conventional electric storage water heater uses an electric resistance element inside the tank. When the thermostat detects that the stored water has cooled below its set point, power is supplied to the element and the water is heated. The insulated cylinder then stores that hot water until it is used.

The concept is simple, but systems differ in tank size, element rating, number of elements, pressure rating, connection positions, tank material and electricity-tariff suitability. Those differences are important when matching a replacement.

Compact, Standard, Premium & Large Electric Storage

What Size Electric Hot Water System Do I Need?

Tank size should be based on actual hot-water use, not just the number of people in the home. A practical demand guide is around 40L per person per day for light use, 50L average, 65L high use and 80L very heavy use. The available heating window and element recovery also affect how much storage is required.

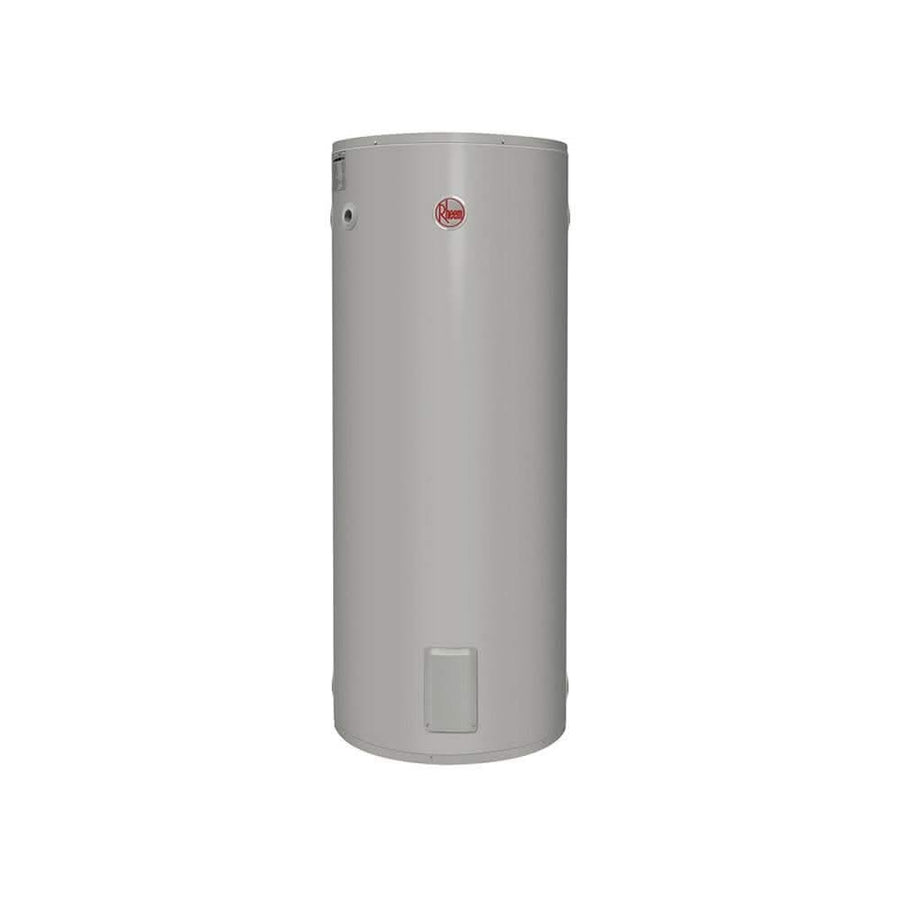

50L, 80L, 125L, 160L, 250L, 315L & 400L

1.8kW, 2.4kW, 3.6kW & Twin-Element Electric Hot Water

Element rating affects how quickly an electric tank can recover after hot water is used. Common residential options include approximately 1.8kW, 2.4kW and 3.6kW, although the exact choices vary by brand, tank size and state-specific product configuration.

A larger element does not increase tank capacity — it increases heating rate. The electrical circuit must suit the selected element, so a different kW option is not automatically a drop-in replacement for the existing system.

Electric Hot Water Tariffs Explained

A controlled-load tariff supplies selected appliances such as electric hot water from a dedicated controlled circuit, generally during off-peak periods. The electricity rate can be lower, but the water heater may not be able to reheat whenever it wants.

That makes storage capacity important. A larger cylinder can heat during the available period and store enough hot water for use later. Controlled-load availability, hours and pricing vary by electricity retailer and network, so the existing tariff should be confirmed rather than assumed.

Vitreous Enamel vs Stainless-Steel Electric Hot Water

Most mainstream electric storage water heaters use a steel cylinder protected internally by vitreous enamel and an anode-based corrosion-protection system. Premium electric ranges may use stainless-steel cylinders instead, with different corrosion behaviour, weight and water-quality requirements.

Neither material should be selected from the material name alone. Check local water quality, warranty terms, required maintenance, dimensions and the exact manufacturer limits for the model.

Can Electric Storage Use Rooftop Solar?

Yes. Electric resistance hot water can use electricity generated by rooftop solar when the system is configured to heat while solar generation is available. This can increase solar self-consumption by storing daytime electricity as hot water for later use.

The economics depend on the system’s element input, solar-system output, electricity tariff and existing controlled-load arrangement. Australian Government guidance notes that shifting electric hot water from controlled load to solar self-consumption may require electrical changes, so the tariff and metering arrangement should be assessed before altering it.

Electric Storage vs Heat Pump Hot Water

What Temperature Should Electric Storage Hot Water Use?

Australian Government guidance recommends a 60°C thermostat setting for storage hot water systems. Storage temperature and delivered outlet temperature are different issues: plumbing installations can use temperature-control devices where required so water is stored hot enough for hygiene while being delivered more safely to applicable fixtures.

Do not lower the cylinder thermostat simply to solve an outlet-temperature issue without considering the health and plumbing requirements of stored hot water.

Replacing an Existing Electric Hot Water System

Electric storage is often one of the simplest hot-water systems to replace like-for-like, but the same litre capacity does not guarantee the same physical or electrical installation. Dimensions, connections, pressure and element rating can differ between brands and generations.

What Needs to Match on an Electric Hot Water Replacement?

Water-heater pressure ratings and required safety valves vary between models. The PTR valve, any expansion-control valve and pressure-control components need to suit the exact cylinder specification. Reusing an existing valve purely because the thread size fits can be incorrect.

Connection location also matters. Some electric systems have dual-handed hot and cold connections, while others use fixed positions. Matching connection height and orientation can reduce replacement pipework, but the new installation still needs to meet current requirements.

Product price only. Delivery, valves, fittings, pipework, installation, electrical work, disposal and other extras are separate unless expressly included with the selected product.

Electric Hot Water Warranty, Anodes & Tank Care

Electric hot-water warranties vary by brand and model. Cylinder coverage is commonly longer than coverage for elements, thermostats, valves and labour, so compare the actual warranty structure rather than only the headline number.

Many vitreous-enamel cylinders use a sacrificial anode as part of their corrosion-protection system. Stainless-steel models use different protection strategies and can have different water-quality requirements. Follow the service and water-quality requirements for the exact product.

Common Electric Hot Water Problems

No hot water does not automatically mean the tank has failed. Supply issues, circuit protection, thermostats, heating elements, controlled-load timing and plumbing faults can all affect an electric storage system.

Buying an Electric Hot Water System Supply Only

Choose the electric storage system first, then check delivery and add only the valves, pipework, fittings or accessories required for the job. For a replacement, record the existing brand, model, capacity, element rating, pressure, dimensions and connection positions before selecting the new cylinder.
